Maximize EV Range: 4 Key Factors to Bridge the 90-Mile Gap
"The sticker says 350 miles, but the highway says 260."
Understanding the gap between a laboratory test and a Tuesday morning commute is the difference between owning an EV and being stranded. To master range, you must look past the single number on the window sticker and learn to decode the interplay of chemistry, physics, and thermal management.
Key Takeaways * Capacity vs. Usability: The distinction between gross battery capacity (total energy) and usable capacity (what you can actually use) is the primary factor in range accuracy. * The Two Pillars: Energy density (Wh/kg) and aerodynamic efficiency (Cd) are the two most critical factors for long-range performance. * Thermal Control: Liquid cooling versus air cooling determines how much theoretical range survives high-speed driving or freezing temperatures. * The Real Math: Real-world range is the product of Efficiency (miles/kWh) multiplied by Usable Battery Capacity (kWh).
How do battery capacity and energy density determine range?
A technician in a sterile lab clicks a heavy metal casing into place, the sound echoing against the concrete floor. The heavy lifting of building a battery pack is done, but the numbers on the spec sheet tell only half the story.
The relationship between kilowatt-hours (kWh) and range is not linear. For example, a vehicle with a 77kWh battery might actually travel less distance than a vehicle with a 60kWh battery if the larger pack is housed in a heavy, aerodynamic-heavy SUV.
This is where energy density—measured in Watt-hours per kilogram (Wh/kg)—becomes the deciding factor. Higher energy density allows manufacturers to pack more energy into the same physical space without adding massive weight penalties.
As the battery grows, the vehicle grows. This creates a physics loop: increasing the battery size increases the vehicle's mass, which increases rolling resistance and the energy required to move the car. This is why the weight-to-range ratio is so vital.
If you double the battery size but the weight increases so much that efficiency drops by half, you haven't gained any net range.
Chemistry plays the final role in this balance. NCM (Nickel Cobalt Manganese) chemistries are the gold standard for high energy density, making them ideal for long-range luxury EVs.
Conversely, LFP (Lithium Iron Phosphate) chemistries offer better cycle life and cost-efficiency, making them the preferred choice for urban commuters where weight is less of a factor than longevity.
Why is there a gap between "Official Range" and "Real-World Range"?
A driver pulls onto a sprawling interstate at 75 mph, the wind whistling slightly against the glass. The digital dashboard shows a range of 300 miles, but the feeling in the driver's gut is one of sudden, looming anxiety.
The gap exists because testing cycles vary wildly. The US EPA (Environmental Protection Agency) uses much more conservative, realistic testing than the CLTC (China) or the WLTP (Europe/Global) standards.
If you buy a car in the US, the EPA number is your most reliable baseline, but it is still a laboratory ideal.
The most significant "killer" of range is speed. Because aerodynamic drag increases with the square of velocity, doubling your speed doesn't just double the resistance—it quadruples it.
This is why an EV that claims 300 miles of range might only deliver 210 miles when driving at sustained highway speeds.
Temperature is the second great variable. Cold weather affects the mobility of lithium ions within the battery, making the chemical reactions less efficient. Furthermore, the energy required for cabin heating (HVAC) can drain a battery significantly in winter.
On the flip side, regenerative braking—the ability to recapture kinetic energy when lifting off the accelerator—can extend range in stop-and-go traffic, acting as a "virtual" range extender.
Advanced Battery Technologies: What is driving the next generation of EVs?
In a high-tech manufacturing facility, robotic arms move with surgical precision, placing thin layers of silicon into battery cells. This is the frontier of energy storage, where the next decade of mobility is being decided.
One of the most impactful shifts is the move toward 800V architecture. Higher voltage systems allow for much faster charging speeds and higher efficiency in the transfer of energy from the battery to the motors.
This reduces the heat generated during the charging process, allowing for more consistent performance.
We are also seeing the transition from graphite to silicon-based anodes. Silicon anode technology promises much higher energy density and faster charging speeds than traditional carbon-based cells. Simultaneously, manufacturers are moving toward Cell-to-Pack (CTP) and Cell-to-Chassis (CTC) designs.
By eliminating the heavy modular housings used in older EVs, they can fit more active battery material into the same physical footprint.
The ultimate goal remains the solid-state battery. The roadmap to solid-state involves replacing liquid electrolytes with solid ones, which could theoretically solve the current bottlenecks of thermal stability and energy density.
For now, these advancements are the bridge to a future where range anxiety is a relic of the past.
How to calculate the "True Efficiency" of an EV?

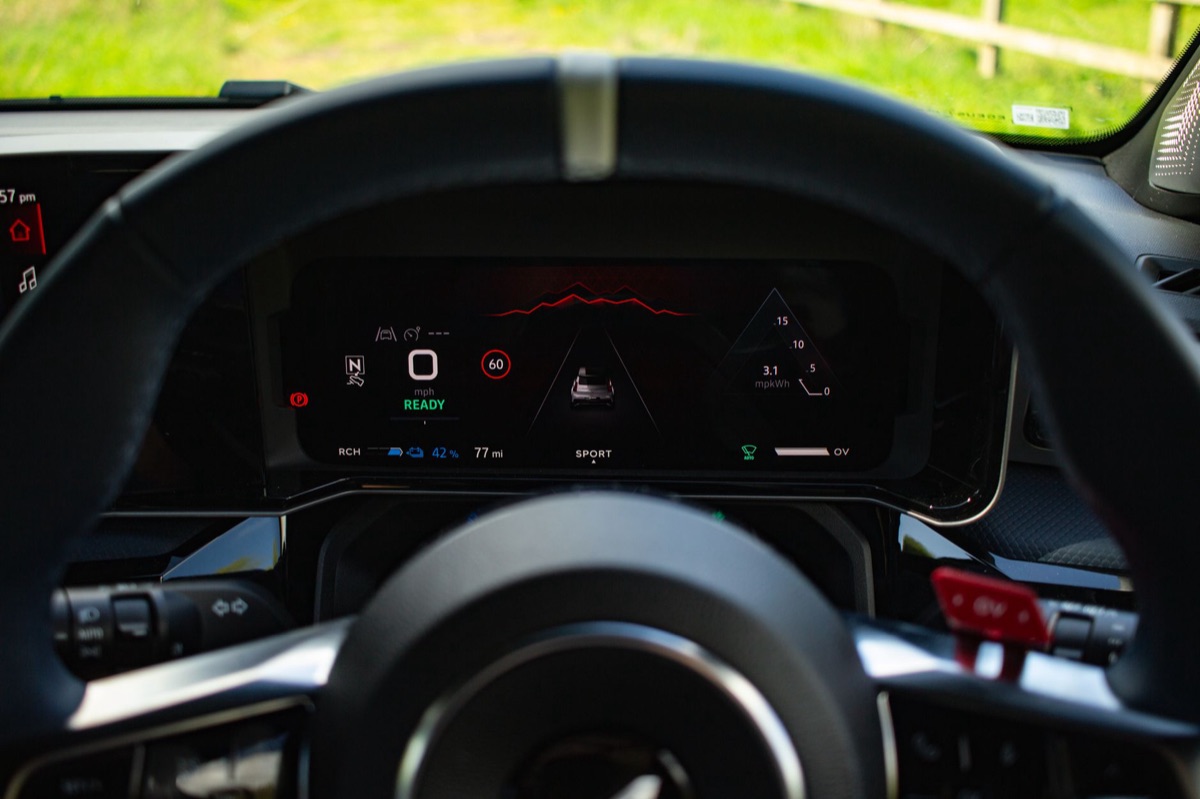

A driver stares at the dashboard, comparing the remaining miles to the percentage remaining on the battery. Is the car efficient, or is the battery just large?
To compare vehicles fairly, you must use the formula for efficiency: miles per kWh (or Wh/mi). A heavy SUV with a massive 100kWh battery might only get 2.5 miles per kWh, while a compact sedan with a 60kWh battery might achieve 4.0 miles per kWh.
In this scenario, the "lesser" battery in the sedan actually provides more usable range.
There is an "efficiency sweet spot" for every EV, typically found at moderate speeds (roughly 30–50 mph). At these speeds, the motors operate in their most efficient range and aerodynamic drag is minimal. For those living in temperate or cold climates, the presence of a heat pump is mandatory.
Heat pump technology moves heat rather than generating it through resistive heating, making it much more efficient for cabin climate control.
| Vehicle Class | Typical Battery (kWh) | Typical Efficiency (mi/kWh) | Resulting Range (approx.) |
|---|---|---|---|
| Compact Sedan | 60 | 4.0 | 240 miles |
| Luxury SUV | 100 | 2.5 | 250 miles |
| Performance EV | 90 | 3.0 | 270 miles |
##
A couple sits in a bright dealership showroom, looking at two different models. One is built for the city streets they navigate daily; the other is built for the cross-country trips they take every summer.
Choosing the right EV depends entirely on your personal driving profile. For the Commuter Profile—those primarily driving in urban environments—prioritizing LFP batteries and high efficiency is more important than maximum highway range.
For the Long-Distance Traveler, the focus should shift to 800V architecture, NCM chemistry, and aerodynamic profiles to ensure they can cover large distances between charges.
When making your decision, follow these steps to ensure the vehicle fits your life:
- Determine your "Highway Ratio": Calculate how much of your driving is at high speeds versus city speeds. If you do 80% highway driving, prioritize aerodynamics and NCM chemistry. 2. Check the Charging Speed: If you rely on public chargers, an 800V architecture is more important than a slightly larger battery. 3. Evaluate the "Buffer" Rule: Never buy an EV based solely on the maximum advertised range. Always assume you will need a 20% buffer for weather, elevation, or unexpected detours. 4. Verify the Climate Package: If you live in a cold region, ensure the vehicle has a high-efficiency heat pump.
#
